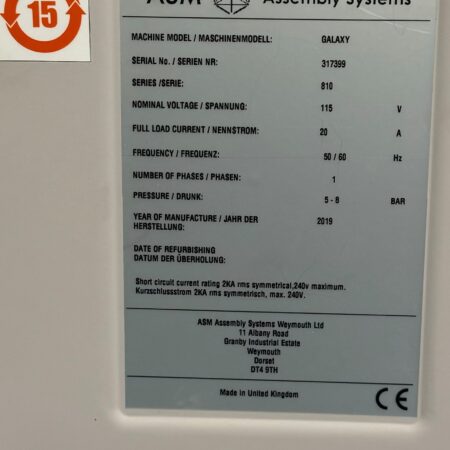

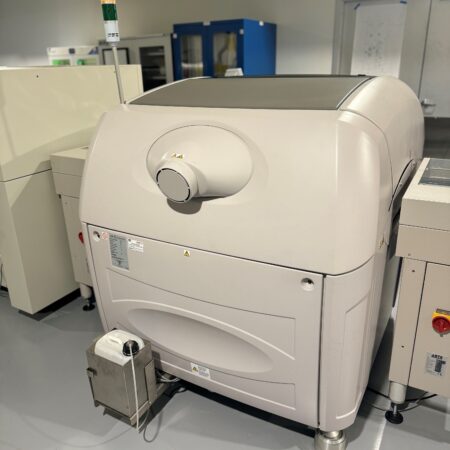

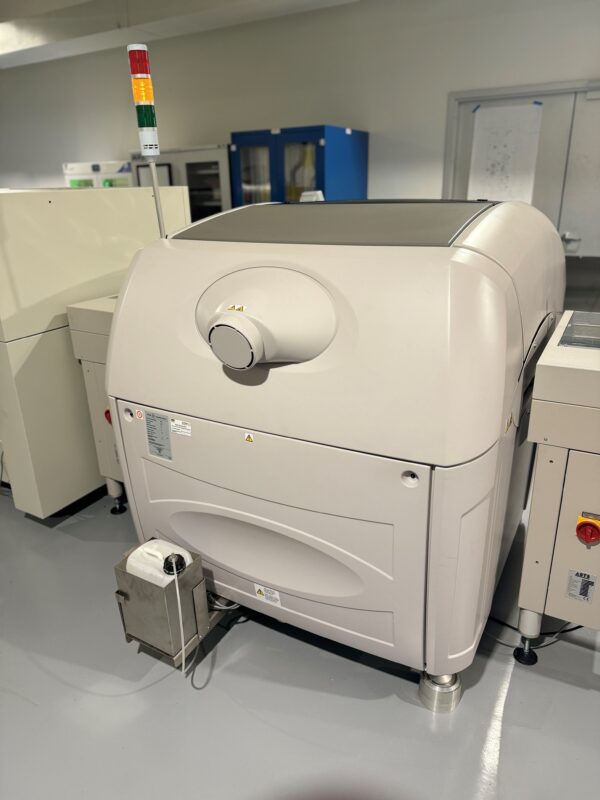

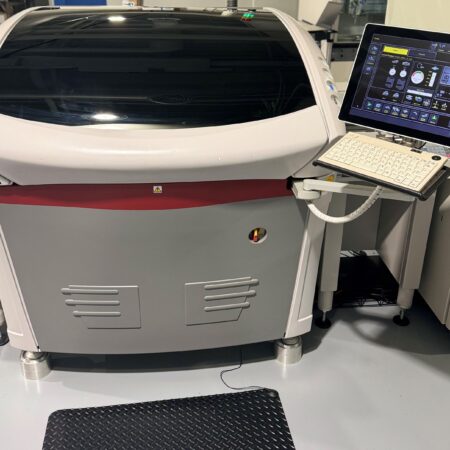

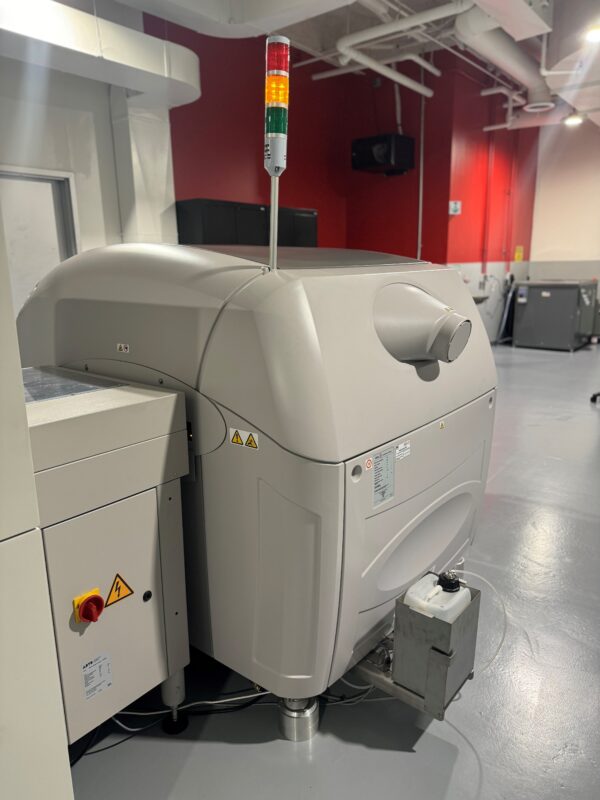

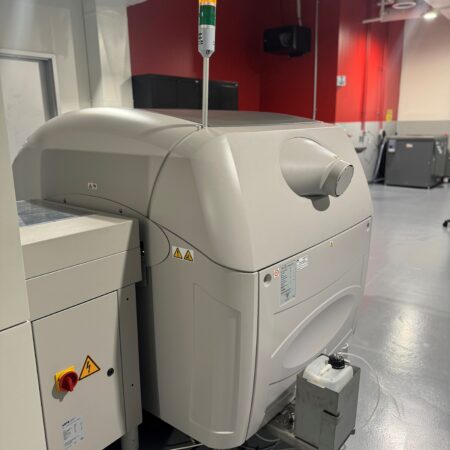

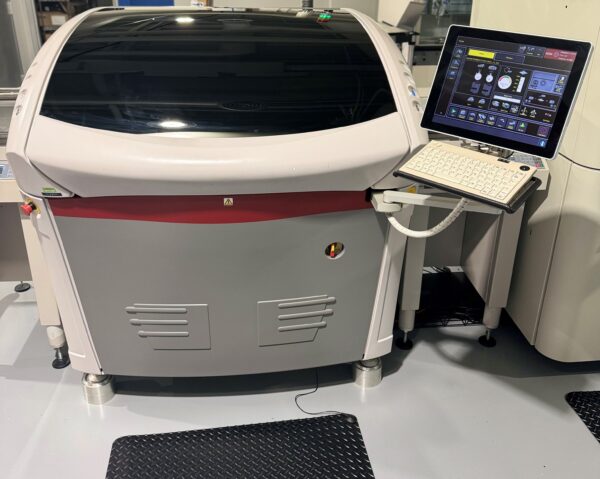

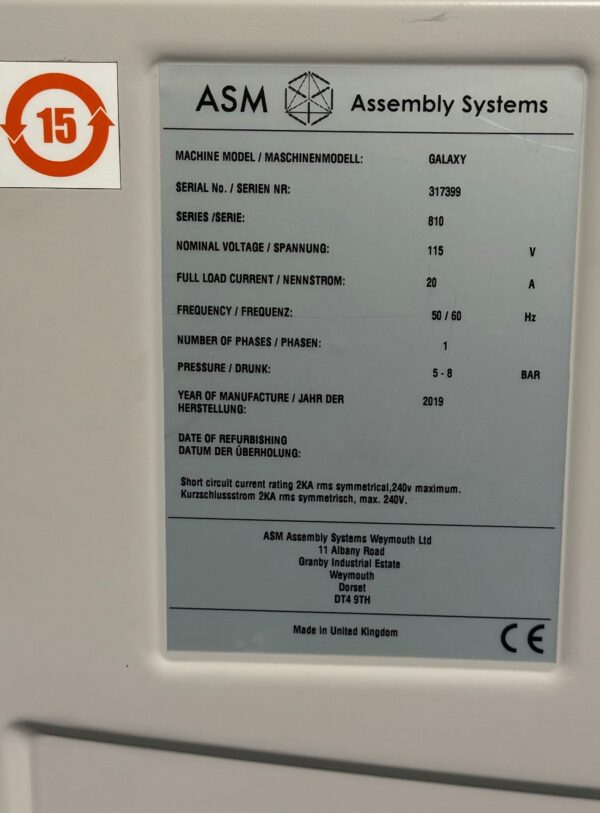

Make: DEK / ASM
Model: Galaxy
Series: 810
Year: 2019
Hours: 609 (Very Low)
HawkEye 1700 Digital Camera
Accuracy: > 2.0 cmk @ ±12.5 μm, (±6 sigma)
Optimum Cycle Time: 7 Seconds
Motion Control Via CAN BUS Network

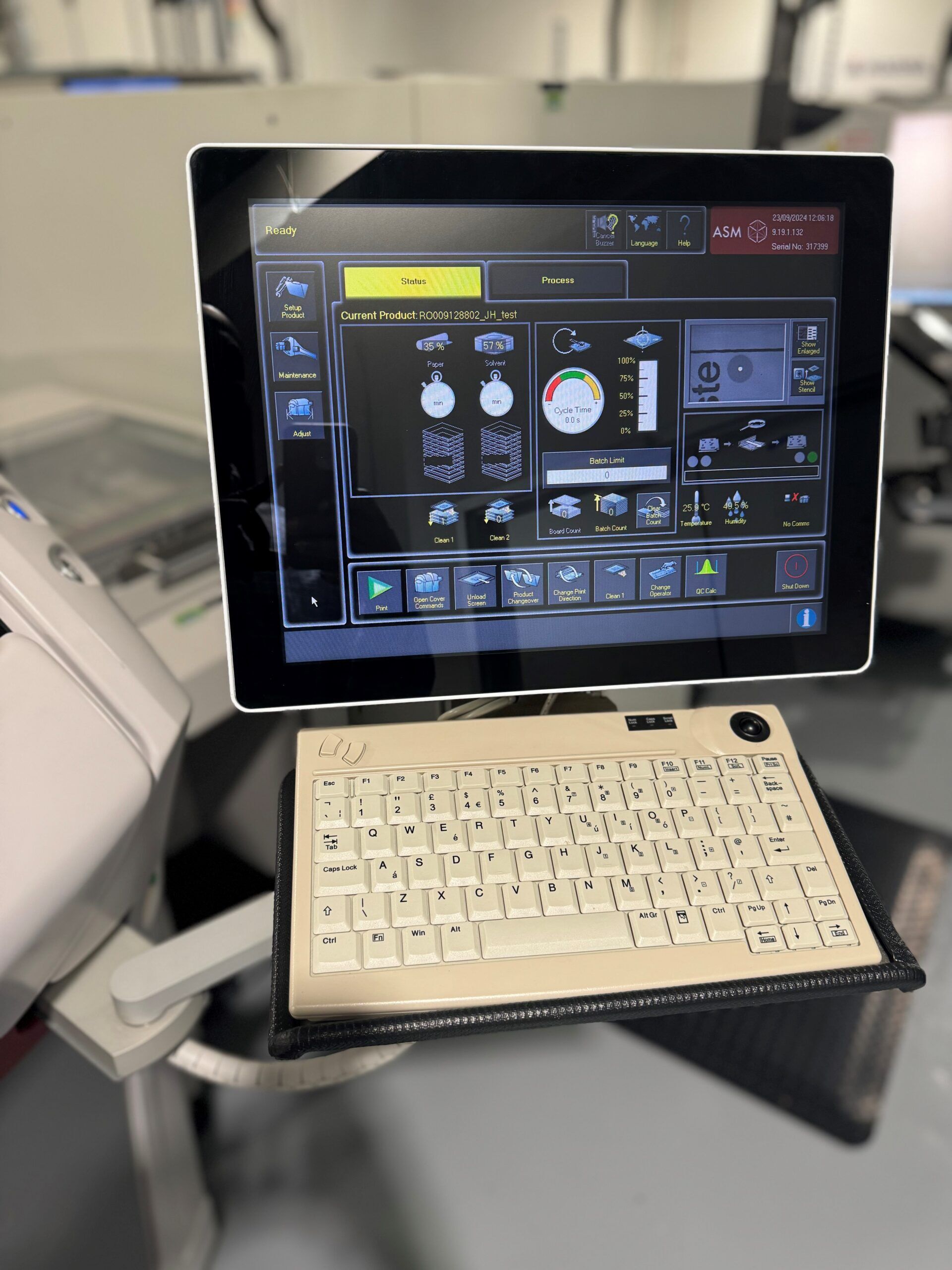

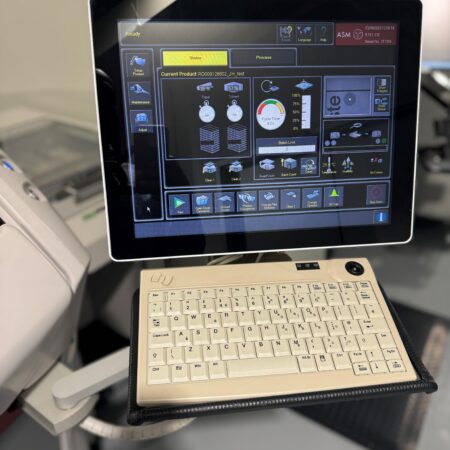

Software: Windows Embedded Standard 7
Axle Drive: High-precision linear motors and encoders with 1 μm accuracy
Squeegee Pressure Control: Software-controlled, motorized, with closed-loop control
Template Positioning: Automatic loading system with drip tray for squeegee

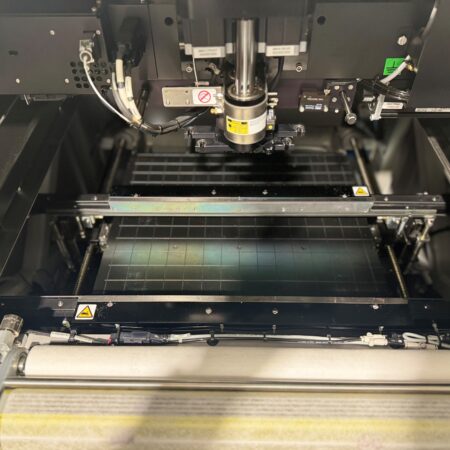

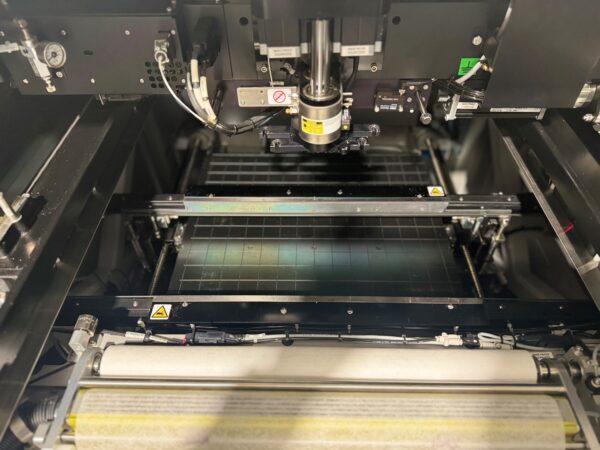

Stencil Alignment: Motorized via actuators (X, Y, and theta)
Underside Cleaning: DEK Typhoon high-speed cleaner
Min Substrate Size: 50 mm (X) × 40.5 mm (Y)
Max Substrate Size: 620 mm (X)** × 508.5 mm (Y)
Complete & Operational
