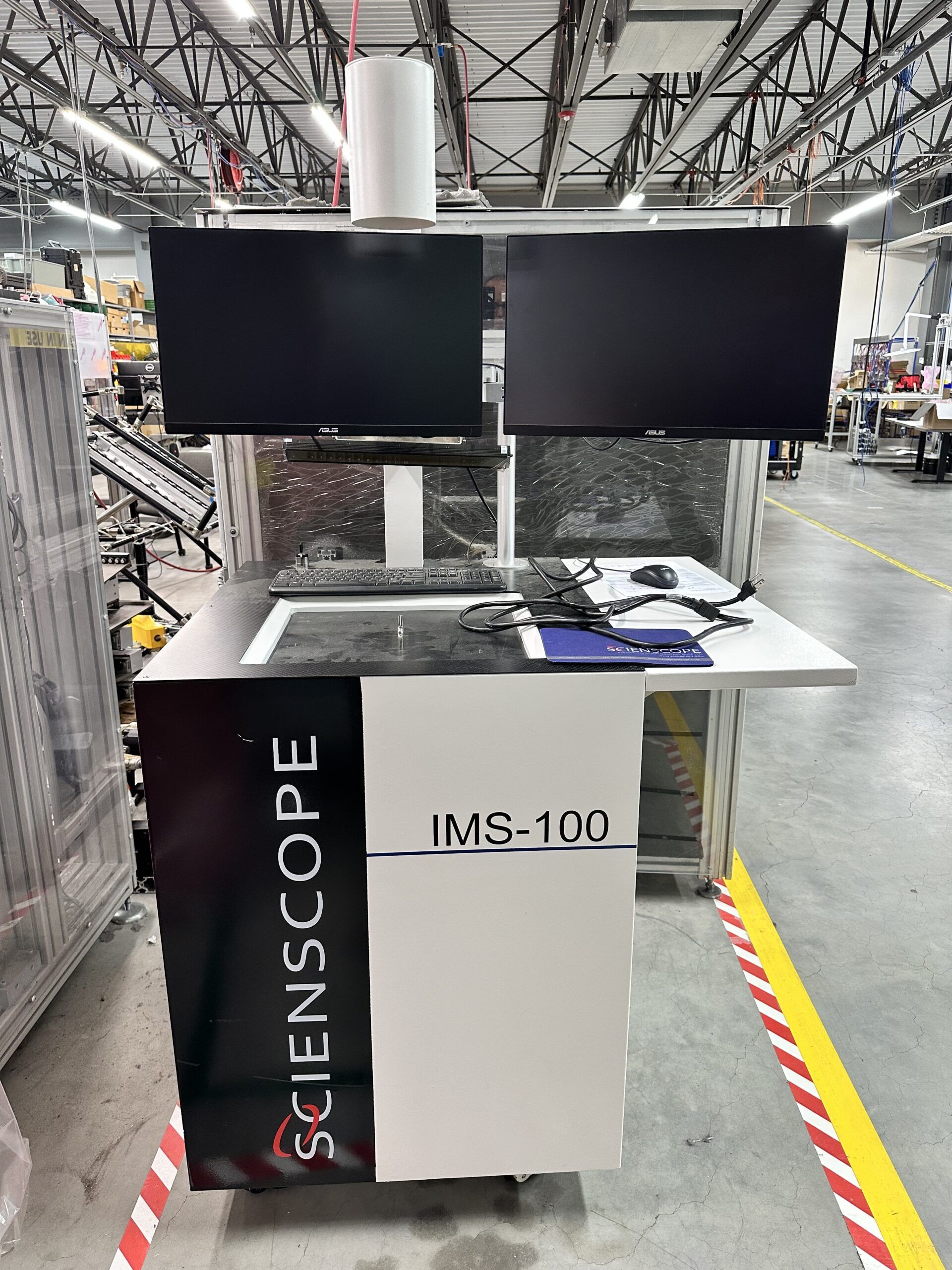

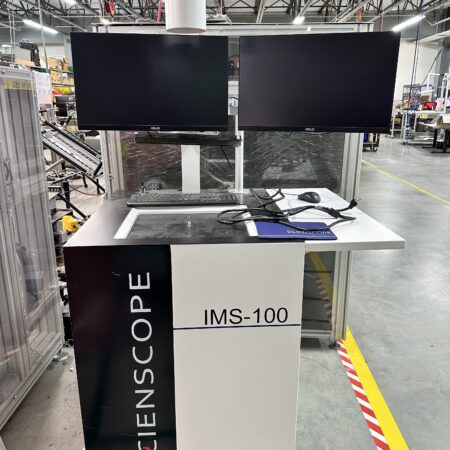

Make: Scienscope
Model: IMS-100-T
Year: 2023
High Performance Material Processing & Receiving Station
Inspect Types: SMT and TH, Standard Reels, Cut Strips, ESD Bags, JEDEC
Reel Size: 7”, 10”, 13”, and 15”
Up to (4) 7” Reels
Single 13” or 15” Reels
Software Interface For Automatic Label Printing
Handheld Barcode Reader – DataLogic
Zebra Label Printer (XR-BC-LP)
Mobile Scanning

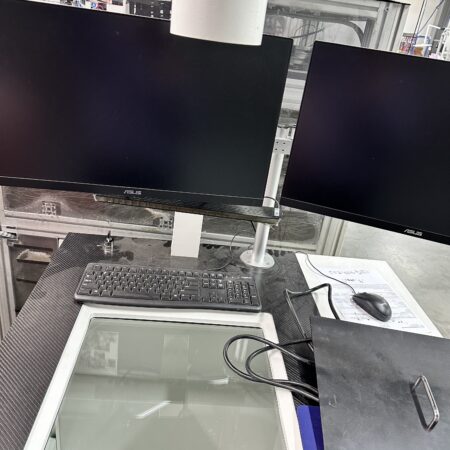

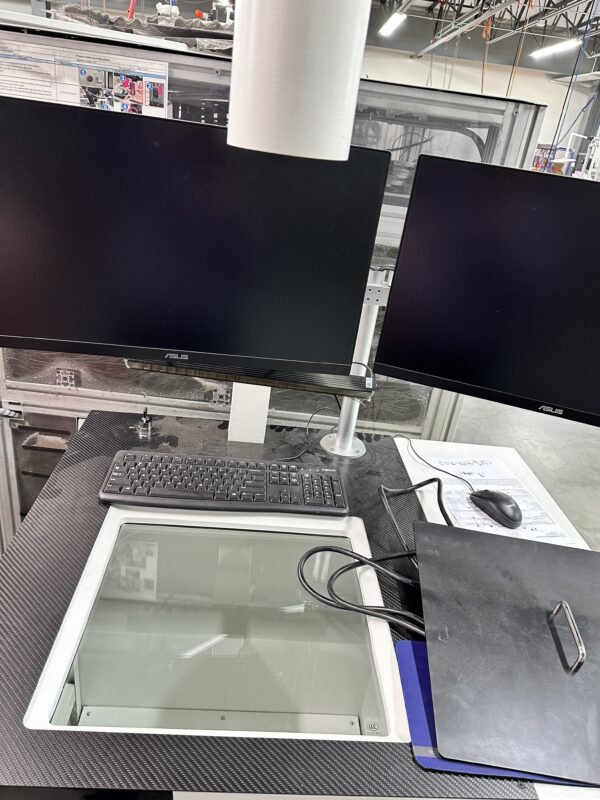

Dual Monitor
20 Megapixels Optical Camera
20 Megapixels Top Scanning Camera
Dims: 39.4” x 31.9” x 60.2”
Weight: 429 lbs

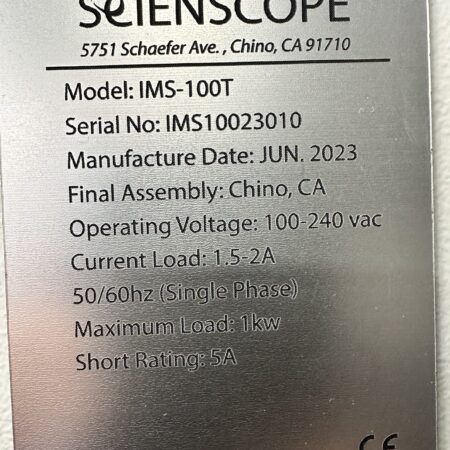

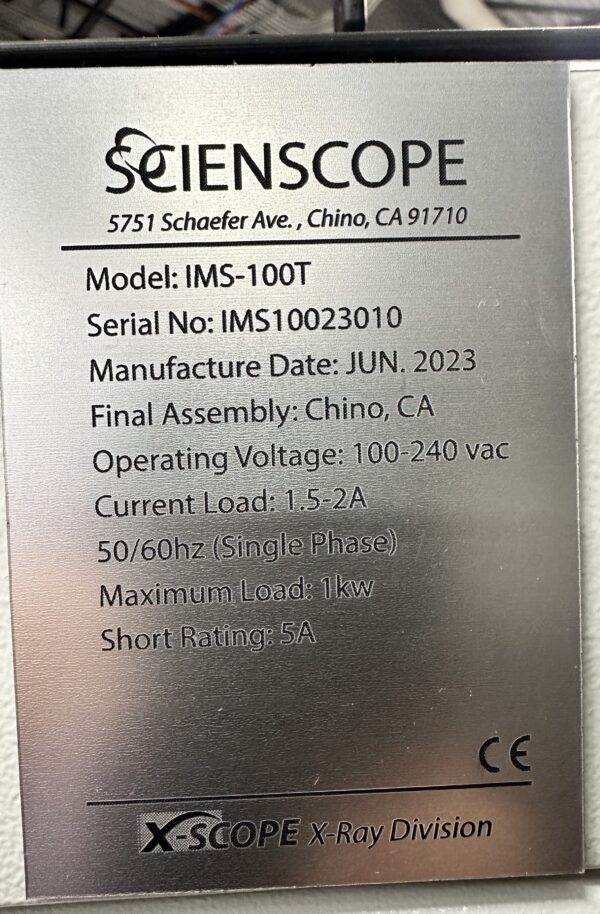

Electrical: AC110-240V 50/60Hz
Complete & Operational
The Scienscope Reel Smart Lite high-resolution barcode camera system with an image-based algorithm reads any barcode even with defects. The Reel Smart Lite will help automate your incoming process and make the relabeling process safe and easy, helping minimize human error. Top scanner option available for additional collection of all your incoming material.
